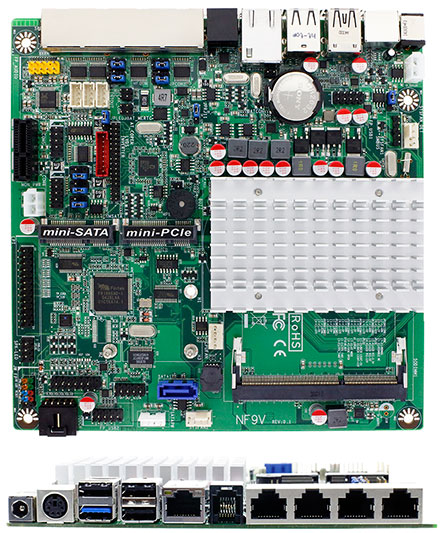

Jetway NF9VT-2930 (Intel Bay-Trail)

Jetway NF9VT-2930 (Intel Bay-Trail)

  • Intel® Bay Trail-D/M/I Processor
  • Supports 1 * DDR3L 1333/1066MHz Single/Dual CH up to 4GB/8GB
  • Support 1 * Serial ATAII (3Gb/s) Device
  • Gigabit LAN: 1 * Realtek LAN
  • 1 * Mini-PCIe, 1 * PCIe x1 slot
  • 4 * RJ45 ports for External COM ports, 2 * Internal COM
  • 1 * USB 3.0, 7 * USB 2.0
  • 1 * VGA, 1 * 24-bit Dual Channel LVDS
  • +12V DC-in jack
  • Touch Panel Control IC integrated on board
  • Amplifier implement to support 3W Speaker
  • Support CPU Over-Temperature protection
  • Support CPU Over-Current/Under Voltage protection
  • Support DRAM Over-Current/Under Voltage protection
  • Support [more]

    Share

229.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

Build/Install:

  • Intel® Bay Trail-D/M/I Processor
  • Supports 1 * DDR3L 1333/1066MHz Single/Dual CH up to 4GB/8GB
  • Support 1 * Serial ATAII (3Gb/s) Device
  • Gigabit LAN: 1 * Realtek LAN
  • 1 * Mini-PCIe, 1 * PCIe x1 slot
  • 4 * RJ45 ports for External COM ports, 2 * Internal COM
  • 1 * USB 3.0, 7 * USB 2.0
  • 1 * VGA, 1 * 24-bit Dual Channel LVDS
  • +12V DC-in jack
  • Touch Panel Control IC integrated on board
  • Amplifier implement to support 3W Speaker
  • Support CPU Over-Temperature protection
  • Support CPU Over-Current/Under Voltage protection
  • Support DRAM Over-Current/Under Voltage protection
  • Support CPU Smart Fan & DC Fan
  • Thin Mini ITX factor (170mm * 170mm) within 20mm height

 Form Factor
Dimensions - Thin Mini-ITX (6.7-in * 6.7-in, 170 * 170mm) within 20mm height
 Processor System
CPU - Intel® Bay Trail-D/M/I Processor
Core Number - (By CPU)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - SoC
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 1 (full size)
mSATA - 1 (full size)
PCIe - 1 (x1)
CFast Card Socket - 0
CF Card Socket - 0
 Memory
Technology - Single/Dual Channel DDR3L 1333/1066 MHz SDRAM
Max. - 4/8GB
Socket - 1 * SO-DIMM
 Graphics
Controller - Intel® HD Graphics
VRAM - Shared Memory
VGA - 1(Internal)
LVDS - 1 (Dual Channel 24-bit, Max. resolution 1920 * 1200@60Hz)
HDMI - 0
DVI-I - 0
DisplayPort - 0
MultiDisplay - Yes (Dual Display)
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Realtek RTL8111G
Connector - 1 * RJ 45
 SATA
Max Data Transfer Rate - 1 * SATAII (3.0Gb/s)
 Rear I/O
VGA - 0
DVI-I - 0
HDMI - 0
DisplayPort - 0
Ethernet - 1
USB - 4 (1 * USB 3.0, 3 * USB 2.0)
Audio - 0
Serial - 4 (4 * RJ45)
RJ11 - 1
eSATA - 0
PS2 - 1
DC-input - 1
 Internal Connector
USB - 4 (4 * USB 2.0 via 10pin header)
PS2 - 0
LVDS / inverter - 1/1
VGA - 1
Serial - 2 (2 * RS-232 with 5V/12V selectable header, 1 * RS232/422/485)
SATA - 1 * SATAII (3.0Gb/s)
mPCIe - 1 (full size)
Parallel - 1
mSATA - 1 (full size)
CIR - 0
GPIO 8-bit - 4in / 4 out
Chassis intrusion - 1 (via 2pin header)
Audio Header - 1 * FP_AUDIO (1 * 2CH Line Out ,1 * MIC ,1 * 2CH Audio w/3W Amp)
SMBUS(I2C) - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - +12V DC-in jack
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C – 60°C
- Storage: -20°C – 85°C
