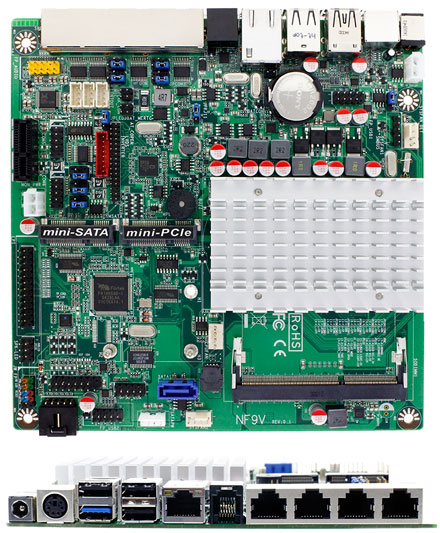

Jetway NF9V-2930 (Intel Bay Trail-M)

Jetway NF9V-2930 (Intel Bay Trail-M)

  • Intel® Baytrail-M N2930
  • 1 * DDR3L 1333 up to 8GB
  • 1 * Serial ATAII (3Gb/s) Devices
  • I2C support
  • Touch panel I/F support
  • 4 * RJ45 for Series(Console) port, 1 * RJ11
  • 1 * Realtek Gigabit LAN, 1 * PS2
  • PCIe x1 * 1, mPCIe * 1, mSATA * 1
  • Support CPU Over-Temperature protection
  • Support CPU Over-Current/Under Voltage protection
  • Support DRAM Over-Current/Under Voltage protection
  • Support CPU Smart Fan
  • Support DC Fan
  • Mini-ITX form factor (170mm x 170mm)


Share

219.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

Form Factor

Dimensions - Thin Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)

Processor System

CPU - Intel® Baytrail-M/D/I Processor
- Supports Hyper-Threading Technology
Core Number - (By CPU)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - N/A
BIOS - AMI 64Mb Flash ROM

Expansion Slot

PCI - 0
Mini-PCIe - 1
mSATA - 1
PCIe - 1 (x1)
CFast Card Socket - 0
CF Card Socket - 0

Memory

Technology - Dual/Single Channel DDR3 1333/1066 MHz SDRAM (By CPU)
Max. - 8GB
Socket - 1 x SO-DIMM

Graphics

Controller - Intel® Gen7 Intel® Graphics DX 11, OGL3.2
VRAM - Shared Memory
VGA - 1(Internal)
LVDS - Dual Channel 24-bit, max resolution 1920x1200@60Hz
HDMI - No
DVI-I - No
DisplayPort - No
MultiDisplay - Yes (Dual Display)

Ethernet

Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Realtek RTL8111G
Connector - 1 x RJ 45

SATA

Max Data Transfer Rate - 1 x SATAII (3.0Gb/s)

Real I/O

VGA - 0
DVI-I - 0
HDMI - 0
DisplayPort - 0
Ethernet - 1
USB - 4 (1 x USB 3.0, 3 x USB 2.0)
Audio - 0
Serial - 4 (4 x RJ45)
RJ11 - 1
eSATA - 0
PS2 - 1
DC-input - 1 (DC-in JACK 12V)

Internal Connector

USB - 4 (4 x USB 2.0 via 10pin header)
PS2 - 0
LVDS / inverter - 1/1
VGA - 1
Serial - 2 (2 x RS-232 with 5V/12V selectable header, 1 x support RS232/422/485)
SATA - 1 x SATAII (3.0Gb/s)
mPCIe - 1
Parallel - 1
mSATA - 1
CIR - 0
GPIO 8-bit - 4in / 4 out
Chassis intrusion - 1 (via 12pin header)
Audio Header - 1 x FP_AUDIO ,1 x 2ch Line Out ,1 x MIC ,1 x 2ch audio w/3W Amp
SMBUS(I2C) - 1

Watchdog Timer

Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min

Power Requirements

Input PWR - 12V DC-In JACK
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Certifications

Certifications - CE, FCC, RoHS, REACH

Environment

Temperature - Operating: 0℃– 60℃
- Storage: -20℃– 85℃
