| Model No
 |
JBC110C96-525-B
JBC110C96-52W-B

 |
|
Motherboard Specification
 |
|
CPU
 |
INTEL ® Atom Dual-Core Processor D525 (45nm,1.80GHz,1024MB L2 Cache)

 |
|
Chipset
 |
I INTEL® Atom D525 + NM10
FSB 800/667 MHz

 |
|
Memory
 |
2 * 240-pin DIMM Sockets for un-buffered Single Channel DDR2 800/667 SDRAM up to 4 GB

 |
|
Expansion Slots
 |
1 * PCI slot,
1 * Mini PCI-E socket

 |
|
LAN
 |
1 * RTL8111DL Gigabit LAN

 |
|
Audio
 |
Realtek ALC662 6-Channel HD Audio CODEC

 |
|
Storage
 |
4 * Serial ATA2 3Gb/s connectors
1 * Ultra DMA 100 / 66 IDE connector

 |
|
USB
 |
Embedded 7 * USB 2.0/1.1

 |
|
BIOS
 |
AMI 8MB DPI Flash ROM

 |
|
Form Factor
 |
Mini-ITX Form Factor, M/B 170 x 170mm

 |
|

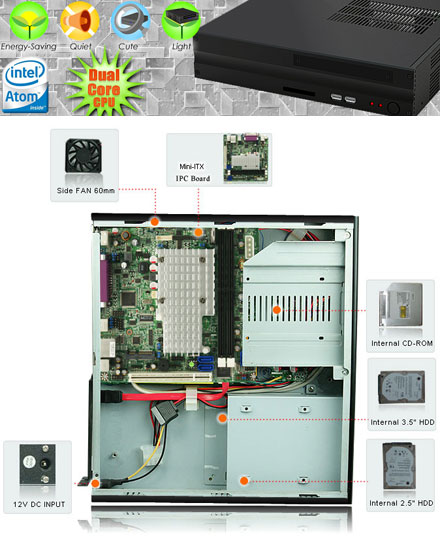

Barebone Specification
 |
|
Product size
 |
273(W) x 300(D) x 65(H)mm

 |
|
Specs    Exposed
 |
1 x Slim ODD Drive Bay (Optional: 1 x 2.5” Drive Bay)
Hidden: 1 x 3.5” HDD Drive Bay and 1 x 2.5” HDD Drive Bay

 |
|
Colors
 |
Black Color

 |
|
Cooling Fan
 |
Side: 6cm Fan x 1

 |
|
Front I/O Port
 |
2 x USB(V2.0),

 |
|
Rear I/O Port
 |
4 * USB 2.0/1.1 ports
1 * PS/2 Mouse & 1 * Keyboard Combined connector
1 * RJ-45 ports
1 * Audio I/O ports ( Line-in, Mic and Line-out )
1 * VGA port
1 * COM port
1 * Parallel port for Printer
1 * 12V DC in connector
1 * WI-FI Antenna hole(Only JBC110C96-52W-B)

 |
|
Power supply
 |
Onboard 12V DC-IN Power

 |
|
Standard Accessory
 |
60W AC-DC Adapter x1
Power Cord x1
Wall Mount x2
1 x WI-FI Antenna(Only JBC110C96-52W-B)
1 x SATA-SLM ODD Cable + Power
CD x1
Manual x1

 |
|
Functional
 |
ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation

 |
|
Packing
 |
Color Box Dimension:426(W) x 137(D) x 378(H)mm
Gross Weight:4.385KG
Net Weight:3.70KG

 |
|
Certificate
 |
CE,FCC RoHS For Barebone
CE,FCC,TUV,UL,CCC,CB For Power Adapter  |
