| CPU
 |
Support VIA Nano L2007 (65nm, 1.6GHz)processor
Front Side Bus 800MHz
 |
|
Chipset
 |
VIA VX900H Chipsets
VIA Chrome9 HD DX9 3D engines ( Share System Memory: 64/128/256/512MB)
 |
|
Memory
 |
2 * 240-pin DIMM Sockets for un-buffered DDR3 1066MHz SDRAM up to 8GB
 |
|
Expansion Slots
 |
1 * PCIe x 16 slot (x 8 card)
 |
|
Power Management
 |
ACPI S3/S4 Compliant ,supports VIA PowerSaver™ feature
 |
|
Storage
 |
2 * Serial ATA2 3Gb/s connectors with RAID 0,1 function
1 * Mini PCI-E
 |
|
Audio
 |
VIA VT1705 HD Audio Code with 6-Channel
 |
|
Ethernet LAN
 |
1 * RTL8111E 10 / 100 / 1000 PCI-E LAN
 |
|
USB
 |
Embedded 7 * USB 2.0/1.1
 |
|
LVDS
 |
Each of onboard 24-bit Dual & Single channel LVDS connector

 |
|
Rear Panel I / O
 |
4 * USB 2.0/1.1 ports
1 * RJ-45 port & 1 * SPDIF out
3 * Audio I/O ports ( Line-in, Mic and Line-out )
1 * VGA port
1 * DB-9 RS232 COM port
1 * HDMI Connector
 |
|
Internal I / O
 |
1 * CPU Smart Fan Connector, 2 * Sys/Chassis Fan Connectors
2 * USB 2.0/1.1 headers for 3 USB ports
1 * 9-Pin COM Port header (RS232/422/485)
1 * 24 bit Dual Channel & 1 * 24 bit Single Channel LVDS header
1 * Parallel header
1 * GPIO header
1 * 24-pin ATX power connector
 |
|
BIOS
 |
AMI 8MB DIP-SPI Flash ROM
 |
|
Form Factor
 |

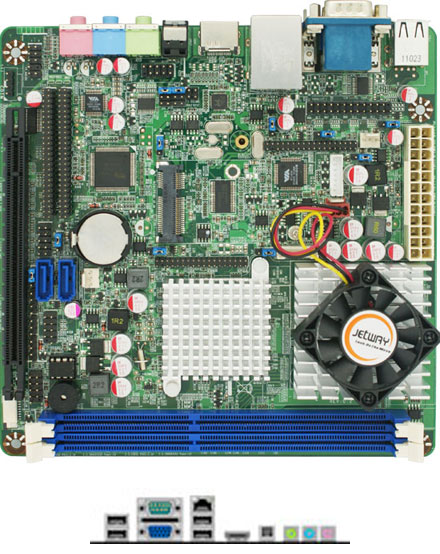

Mini-ITX Embedded Motherboard(170mmx170mm)
 |
|
Packing
 |
Color Box Dimension:200(W) x 200(D) x 70(H)mm
20 PCS in Cases Gross Weight :15.4KGS
20 PCS Net Weight:10.3KGS
20 PCS / Cases, Case size : 720(L) x 410(W) x 200(H)mm
 |
|
Certificate
 |
CE,FCC,RoHS
 |
|
Functional
 |
ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
 |
|
Temperature
 |
Operating within 0~60 centigrade
Storage within -20-85 centigrade |
