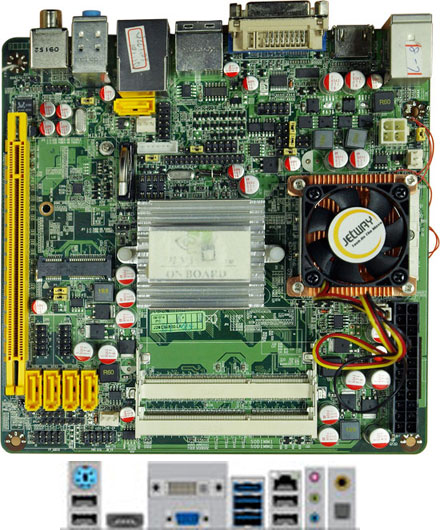

Jetway NC64-LF (for Core2Duo FSB1066 Penryn Mobile, HDMI, DVI, NVIDIA) new

PRODUCT IS CURRENTLY NOT AVAILABLE !

Mini-PCI Express
Intel Penryn !
NVIDIA !
DirectX 10 !

-NVIDIA MCP79MH Single Chipset
-Support Intel Penryn Mobile processor
-Support Front Side Bus 1066MHz
-Dual Channel DDRIII 1066 Memory up to 8GB
-Support 4 Serial ATA2 Devices and 1 eSATA
-On Board Gigabit Ethernet LAN
-Support VGA, DVI, HDMI, LVDS
-HD-DVD & Blu-Ray support
-PCI Express x16 on board
-17 x 17CM Mini-ITX Form Factor

Scope of supply:
- Jetway NF93-LF Mainboard
- CPU cooler/heatsink
- Driver CD
- Manual
- I/O Shield
- SATA cable

CPU	Intel Core Duo Mobile
Graphics	NVIDIA GeForce 9100M
Formfactor	ITX (17x17cm)
RAM	2x SO-DDR-III
Audio	Realtek 888 HD Codec
Base	Intel ITX

USB	10x USB2.0
Firewire	--
IDE/SATA	4x SATA-II (RAID)
LAN	1x 10/100/1000 Mbit
Parallel	--
Serial	--

yes	TV-Out
no	PCI
yes	Mini-PCI
no	IDE
yes	DVI
yes	800x480 Resolution

no	Passive-Cooling
yes	PCI-Express
no	PCMCIA
yes	SATA
yes	CPU changeable
no	Compact Flash

RAM :

CPU	Supports INTEL 45nm Penryn Mobile Processors Front Side Bus 1066 MHz
Chipset	NVIDIA MCP79MH Single Chipset Build-in NVIDIA GeForce 9100M G Graphics Processor Support HD-DVD and Blu-Ray Support next Generation 3D features - DirectX 10 and Open GL2.0
Memory	2 * Dual Channel SO-DIMM Sockets for unbuffered DDR3 1066 SDRAM up to 4GB
Expansion Slot	1 * PCI Express x16 1 * Mini PCI-E
Storage	4 * Serial ATA2 3Gb/s connectors (RAID support)
Audio	Realtek ALC888 6-Channel HD Audio CODEC support SPDIF Coxial/Optical output
Ethernet LAN	1 * Realtek RTL8111DL PCI-E Gigabit Ethernet LAN
USB	Embedded 10 * USB 2.0/1.1
LVDS	Onboard 24-bit dual channel LVDS connector
Real Panel I/O	- 6 * High Speed USB Connectors @ 480 Mbit / s - 1 * eSATA - 1 * DVI Port - 1 * HDMI Port (Audio over HDMI) - 1 * D-Sub 15-pin VGA Connector - 1 * RJ45 Connectors - 1 * Audio - 1 * Coxial SPDIF output, 1* Optical SPDIF output - 1 * PS/2
Internal I/O	- 2 * High Speed USB Connectors @ 480 Mbit / s for 4 USB devices - 1 * LVDS Connector - 1 * RS232/422/485 COM Port - 1 * CIR
BIOS	Award 16MB DIP Flash ROM
Form Factor	Mini ITX Form Factor(170mmx170mm)
Funtional	ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Certificate	CE, FCC, RoHS
